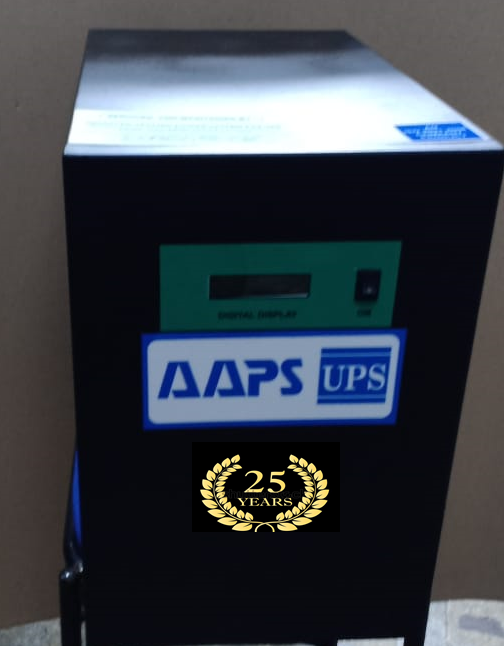

8.0 KVA SINE WAVE LIFT UPS
This UPS system is designed to provide reliable backup power for a range of applications including lifts, computers, lighting, industrial machinery, labs, schools, cyber centers and households. The AC input voltage ranges from 330V to 460V three phase for lifts, and the frequency is 50 Hz with a tolerance of +/-2Hz. The digital display shows battery voltage, AC input and output, charger amps, load and charger mode. Audio alarms include an intermediate beep for computer load UPS and a battery low alarm for the inverter. The system also features protection against battery low, short circuit, overload trip and mains cut off. The UPS voltage is 415V nominal, with a pure sine wave output waveform and better than 98% efficiency.
FOR BOOKING CALL US ON 080-23307412
| AC INPUT | |
| VOLTAGE | 330V TO 460V THREE PHASE FOR LIFT |
| FREQUENCY | 50 Hz+/-2Hz |
| DIGITAL DISPLAY | BATTERY VOLTAGE, AC IN, AC OUT, CHARGER AMPS, LOAD, CHARGER MODE. |
| AUDIO ALARMS | INTERMEDIATE BEEP FOR COMPUTER LOAD UPS, BATTERY LOW ALARAM BATTERY LOW ALARAM FOR INVERTER. |
| DC VOLTAGE | 72V TO 120V |
| PROTECTION | BATTERY LOW, SHORT CURCUIT, OVERLOAD TRIP, MAINS CUT OFF |
| COOLING | NATURAL AIR / FORCED AIR COOLING FOR OVER TEMPATURE |
| OUTPUT SPECIFICATION | |
| UPS VOLTAGE | 415V NOMINAL |
| OUTPUT REGULATION | +/-2% |
| FREQUENCY | 50Hz +/-0.5Hz |
| WAVE FORM | PURE SINE WAVE |
| TRANSFER TIME | ZERO |
| EFFICIENCY | BETTER THAN 98% |
| POWER FACTOR | 0.80 LAGGING |
| BATTERY TYPE | LEAD ACID, TUBULAR, |
| APPLICATION | LIFT, COMPUTERS, LIGHTING INDUSTRIAL, LIFT PURPOSE, LABS, SCHOOLS, COLLEGES CYBER CENTER & HOUSE HOLD ETC |
