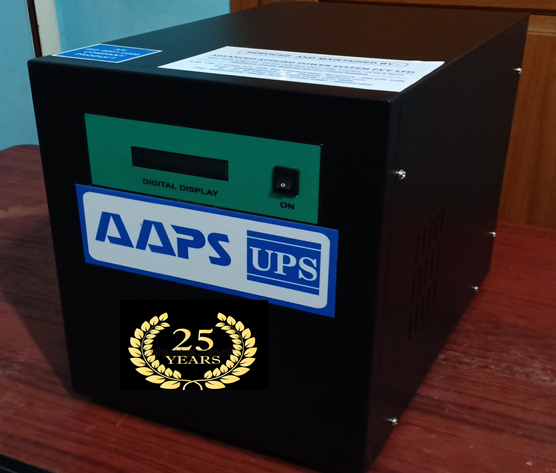

2.0KVA ONLINE UPS
This power backup system is designed for use with a single-phase AC input voltage of 230V +/- 20% and frequency of 50Hz +/- 10%. It features a digital display for monitoring DC voltage, AC voltage, frequency, output voltage, and connected load, and also includes audio alarms for battery low, over load, over voltage, and under voltage. Utilizing APWN technology with IGBT, the system is cooled by forced air and runs on a lead acid, tubular, or SMF battery with a voltage of 48V. The AC output voltage is 230V+/-2% with a pure sine wave form, and the system offers high efficiency at better than 98%. It includes protection for battery low, short circuit, overload trip, mains cut off, and phase failure, making it ideal for use in a variety of industrial and medical applications. Optional features include manual/static bypass, PF correction, remote display/control, software, and SNMP compatibility.
| AC INPUT | |
| VOLTAGE | 230V +/- 20% Single Phase |
| FREQUENCY | 50Hz +/- 10% |
| DIGITAL DISPLAY |
DC VOLTAGE, AC VOLTAGE, FREQUENCY, OUTPUT VOLTAGE & CONNECTED LOAD
|
| AUDIO ALARMS | |
| BATTERY LOW, OVER LOAD, OVER VOLTAGE, UNDER VOLTAGE | |
| TECHNOLOGY | APWN TECHNOLOGY WITH IGBT |
| COOLING | FORCED AIR COOLING |
| BATTERY TYPE | LEAD ACID, TUBULAR, SMF |
| BATTERY VOLTAGE | 48V |
| AC OUTPUT | |
| VOLTAGE | 230V+/-2% Single Phase |
| FREQUENCY | 50Hz +/-0.5Hz |
| WAVE FORM | PURE SINE WAVE |
| TRANSFER TIME | NIL |
| EFFICIENCY | BETTER THAN 98% |
| TRANSIENT VOLTAGE VARIATION | +/- 2%MAX |
| POWER FACTOR | 0.80 LAGGING |
| OVER LOAD | 125% FOR 10 MIN & 150% FOR 1 MIN |
| STATIC VOLTAGE REGULATION | 6% for 50% STEP LOAD CHARGE |
| DYNAMIC VOLTAGE REGULATION |
1%of NORMINAL FOR ALL VARIATIONS OF LINE LOAD 10% to 100% STEP LOAD CHANGE.
|
| WAVE FORM | SINUSOIDAL |
| TOTAL HARMONIC DISTORTION |
FOR LINEAR LOADS 2.5% FOR NON LINEAR LOADS 5%
|
| CREST FACTOR | 1:3 |
| OPERATING TEMPERATURE | |
| RANGE | 0 C to 40 C |
| RELATIVE HUMIDITY | 95% NON CONDENSING |
| Max. OPERATING ALTITUDE | |
| WITHOUT DERATING | 7500ft / 2285m |
| ACOUSTIC NOISE | <60 db |
| OPTIONAL |
MANUAL/STATIC BY PASS PF CORRECTION/REMOTE DISPLAY/CONTROL SOFTWARE/SNMP COMPATIBILITY
|
| PROTECTION |
BATTERY LOW, SHORT CURCUIT, OVERLOAD TRIP, MAINS CUT OFF, PHASE FALIURE, ABNORMAL PHASE SEQUENCE.
|
| APPLICATION |
COMPUTERS, HOSPITALS, CNC MACHINES AND ALL TYPES OF INDUSTRIAL APPLICATION.
|
|
|
